Y559D015-66.8x23x22-1.5

Contact Us

Fax:

+86 532 66731599

_0003_559nm 2
_0003_559nm 2

Y559D015-66.8x23x22-1.5

Applications:

· Life Science

· Scientific Experiment

. Optical Instrument


Product Details:

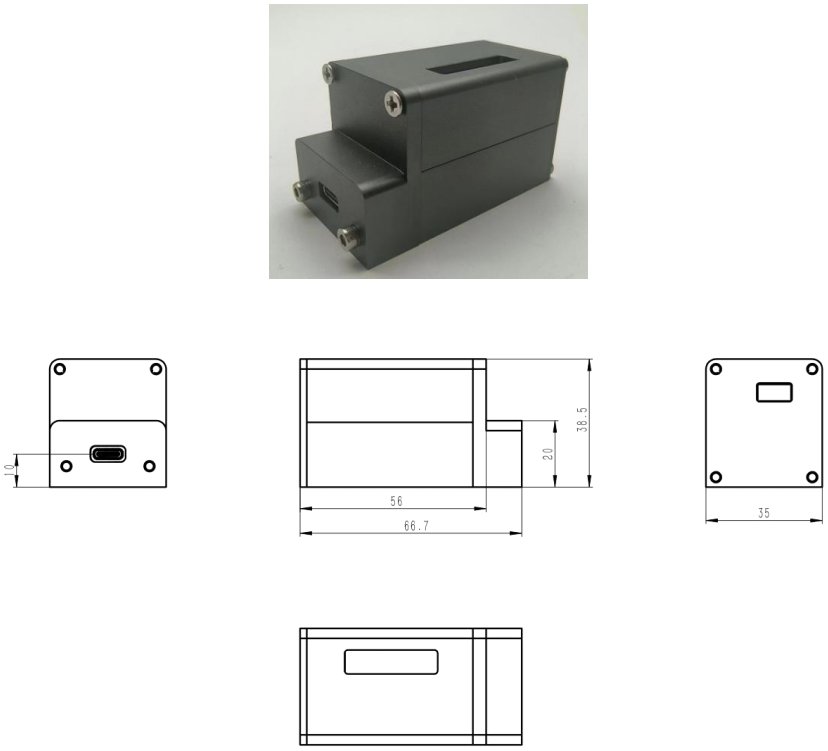

Dimensions (Unit: mm):



Product Specifications:


SpecificationY559D015-66.8x23x22-1.5
Wavelength559 ±2 nm
Output Power<20mW
Spatial ModeTEM00
M² (Beam Quality)≤ 1.3
Beam Asymmetry≤ 1:1.05
Beam Diameter at Output Window (mm)1.5
Beam Divergence (full-angle) (mrad)<1.5
Pointing Stability (>2h,  µrad/°C)± 2
RMS Noise (%) (20 Hz to 20 kHz)≤ 1
Peak-to -Peak Noise (%) (20 Hz to 20 kHz)≤ 3
Long-Term Power Stability (%) (8 hours)< 2
Warm-Up Time (minutes)< 5
Polarization Ratio> 100:1
Laser Drive ModesCW
Power Consumption (W)Typ. 5, Max. 12
Operating Temperature (℃)15 to 35
Storage Temperature (℃)0 to 40
Weight (g)≤ 100


Laser Driver:
