520nm

1
1

520nm

Features:

· DPSS Laser

· 1W@520nm

· Wide Temperature Range

· Fast Rise Time

· High Reliability


Product Details:

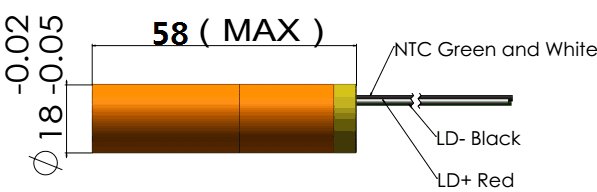

Dimensions (Unit: mm):



Product Specifications:


SpecificationG520D1000-18x58-40
Wavelength520 -1 /+4 nm
Output Power (mW) at 24℃ at 6A900 - 1000mW
Spectral Bandwith< 1
Power Stability at const. Temperature<  ±5%
Output Power ModeCW
Laser Class4
Beam Divergence (full-angle) (mrad)< 50
Beam Diameter at Output Window (mm)0.5
Beam Mode TransverseTEM10
Polarization Ratio (Linear)> 100:1
< 50
Storage Temperature (℃)0 to 40
Rise Time (seconds) at 5.5A (4) (-30 to 50℃)< 5
Weight (g)≤ 250
Lifetime (hours) (MTTF at 25℃)> 5000
