545nm

photobank
photobank

545nm

Features:

· DPSS Laser

· 50mW@545nm

· Wide Temperature Range

· Fast Rise Time

· High Reliability


Product Details:

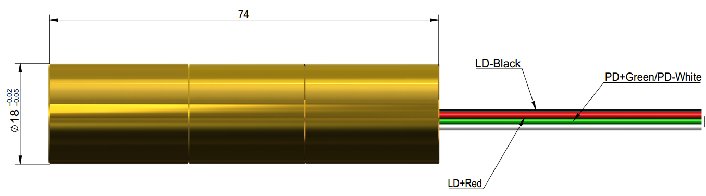

Dimensions (Unit: mm):



Product Specifications:


SpecificationG545D50-18x75-1-00
Wavelength545 ±2 nm
Output Power (mW) from -30 to 50℃50 ±15 mW
Power Stability at 25℃ (RMS)<  ±5%
Output Power ModeCW
Laser Class3B
Beam Divergence (mrad)< 1
Beam Diameter at Output Window (mm)< 12
Beam Mode Transversenear TEM00
Polarization Ratio (Linear)> 100:1
Residual IR<  1%
Storage Temperature (℃)-40 to 60
Rise Time (seconds) < 1
Weight (g)< 90
Lifetime (hours) (MTTF at 25℃)> 5000
