510nm 5W high power DPSS Laser
Applications:
· Laser Medical Treatment
· Scientific Experiment
· Optical Instrument
· Laser Display
Product Details:
510nm 5W high power DPSS Laser
The G510D5000-237X160X71-30 Laser from Lasence are high quality DPSS laser that operates at a wavelength of 510nm. It delivers an output power of over 5W and has a high RMS stability <6%. Power supply is optional.

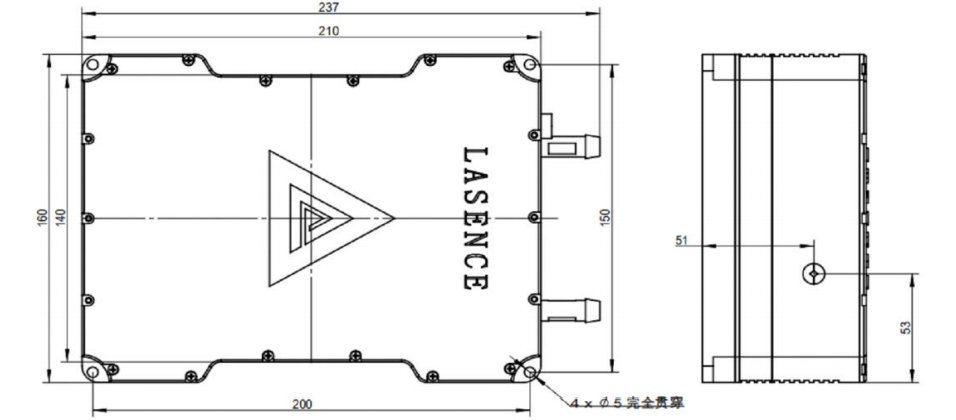

Dimensions (Unit: mm):
Product Specifications:
| Specification | G510D5000-237x160x71-30 |
| Wavelength | 510 -5 /+3 nm |
| Output Power | ＞ 5W |
| Spatial Mode | TEM00 |
| M² (Beam Quality) | / |
| Beam Asymmetry | ≤ 1:1.2 |
| Beam Diameter at Output Window (mm) | 1 |
| Beam Divergence (full-angle) (mrad) | ＜40 |
| Warm-Up Time (minutes) | ＜ 5 |
| Polarization Ratio | ＞ 100:1 |
| Laser Drive Modes | CW |
| Power Consumption (W) | Typ. 116, Max. 150 |
| Operating Temperature (℃) | 15 to 25 |
| Storage Temperature (℃) | 0 to 40 |
| LD Voltage (DC, V) | ＜15 |
| Weight (g) | ≤ 2000 |
