Green 532nm 5mW small laser module
Features:
· Wide Temperature
· Mini Size
· Fast Rise Time
· High Reliability
Product Details:
Green 532nm 5mW small laser module
Lasene G532D005-1241-1.7-(15-50)-11 laser module is customized laser module, which is used in the medical instrument or beauty equipment, it is with good beam spot and high stability.
Wavelength can be 532nm or 551nm, others can be customized.

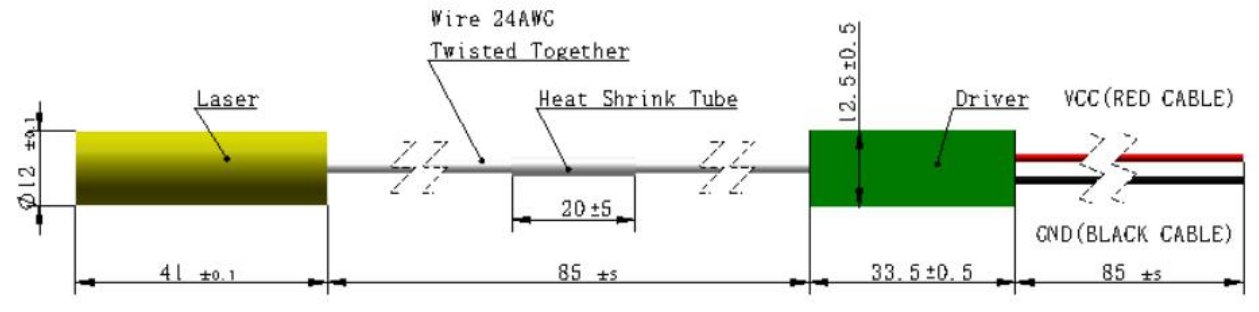

Dimensions (Unit: mm):
Product Specifications:
| Specification | G532D005-12x41-1.7-(15-50)-11 |
| Wavelength | 532 ±2 nm |
| Output Power | <5mW |
| Spatial Mode | TEM00 |
| M² (Beam Quality) | 1.2-1.4 |
| Beam Asymmetry | ≤ 1:1 |
| Residual IR | <4% |
| Beam Divergence (full-angle) (mrad) | <2 |
| Rise Time (Seconds) | <2 |
| Polarization Ratio | >100:1 |
| Laser Drive Modes | CW |
| Power Consumption (W) | Typ. 116, Max. 150 |
| Operating Temperature (℃) | 15 to 50 |
| Storage Temperature (℃) | -20 to 60 |
| LD Voltage (DC, V) | <6 |
| Weight (g) | ≤ 20 |
| Lifetime (hours) (MTTF at 25℃) | >5000 |
