Features
· DPSS Laser
· Fast Rise Time
· High Reliability
· PM Fiber Coupled
Contact Us
555nm 5mW single mode fiber coupled laser module
Features
· DPSS Laser
· Fast Rise Time
· High Reliability
· PM Fiber Coupled
Product Details:
555nm 5mW single mode fiber coupled laser module

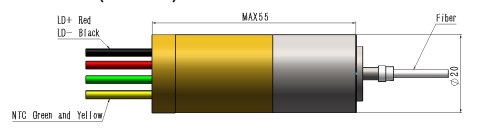

Dimensions (Unit: mm):
Product Specifications:
| Specification | G555D005-20x55-PMF |
| Wavelength | 555 ± 10 nm |
| Output Power | 5- 7mW |
| Spatial Mode | Multi |
| Laser Class | 3B |
| Fiber Type | 3.5/125um PM fiber with 0.9mm loose tube |
| Numerical Aperture | 0.12 |
| Extinction Ratio | 16db |
| Fiber Length (m) | 1 |
| Fiber Termination | FC/PC connector |
| Laser Drive Modes | CW |
| Storage Temperature (℃) | 0 to 40 |
| Weight (g) | ≤ 200 |
| Lifetime (hours) (MTTF at 25℃) | >5000 |

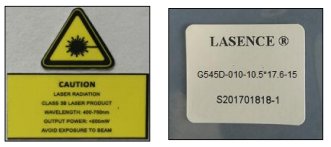

Picture:
