Y574D800-25x17x55-220

Y574D800-25x17x55-220
Y574D800-25x17x55-220

Y574D800-25x17x55-220

Features

· DPSS Laser

· Yellow Laser

· High Power

· Fast Rise Time

Product Details:

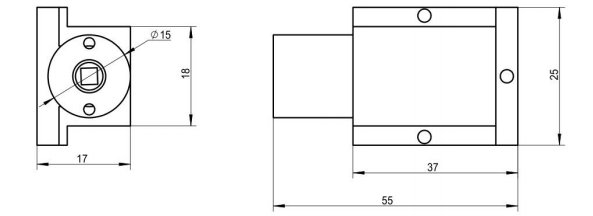

Dimensions (Unit: mm):

Product Specifications:


SpecificationY574D800-25x17x55-220
Wavelength574 ± 3 nm
Output Power> 800mW
Spatial ModeMulti
Laser Class3B
Fiber Core Diameter200 um
Numerical Aperture0.22
Extinction Ratio16db
Fiber Length (m)1
Fiber TerminationSMA905 connector
Laser Drive ModesCW
Storage Temperature (℃)0 to 40
Weight (g)≤ 200
Lifetime (hours) (MTTF at 25℃)>5000


Picture:
