510nm

_0000_2
_0001_1
_0000_2
_0001_1

510nm

Applications:

· Laser Medical Treatment

· Scientific Experiment

· Optical Instrument

· Laser Display

Product Details:

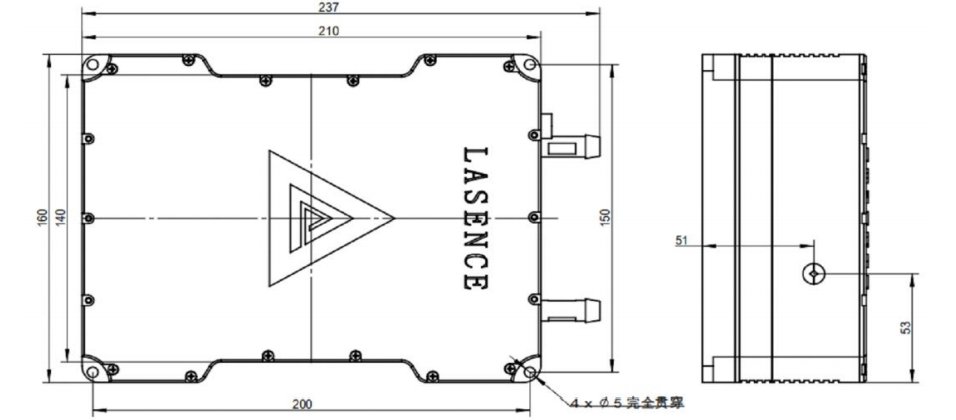

Dimensions (Unit: mm):




Product Specifications:


SpecificationG510D5000-237x160x71-30
Wavelength510 -5 /+3 nm
Output Power> 5W
Spatial ModeTEM00
M² (Beam Quality)/
Beam Asymmetry≤ 1:1.2
Beam Diameter at Output Window (mm)1
Beam Divergence (full-angle) (mrad)<40
Warm-Up Time (minutes)< 5
Polarization Ratio> 100:1
Laser Drive ModesCW
Power Consumption (W)Typ. 116, Max. 150
Operating Temperature (℃)15 to 25
Storage Temperature (℃)0 to 40
LD Voltage (DC, V)<15
Weight (g)≤ 2000
