532nm 1W high Power DPSS Laser
Features:
· DPSS Laser
· with NTC
· Fast Rise Time
· High Reliability
Product Details:
532nm 1W high Power DPSS Laser
Lasence has a series DPSS laser modules based on her own self-frequency doubling laser crystal, range to provide wavelengths of 520nm, 532nm, 545nm, 551n, 555nm, 561nm , 571nm and 577nm with output powers ranging from less than 1mW to 1.8W.
These laser modules come with a typical output beam diameter of 0.5mm and a divergence of ≤40mrad. With dimensions of just 18mm(or 20mm) x 55mm (diameter x length), the modules are highly compact while still providing a high output power.
The laser modules also have a wide temperature range of between -30 and 50 degrees Celsius with a fast rise time, while providing superior performance and reliability.

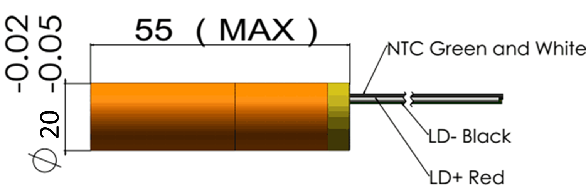

Dimensions (Unit: mm):
Product Specifications:
| Specification | G530D1000-20x55-40 |
| Wavelength | 530 ±1 nm |
| Output Power (mW) at T at 9A | > 1000mW |
| Power Stability at const. Temperature | < ±5% |
| Output Power Mode | CW |
| Laser Class | 4 |
| Beam Divergence (full-angle) (mrad) | < 50 |
| Beam Diameter at Output Window (mm) | 0.8 |
| Beam Mode Transverse | TEMn0 |
| Polarization Ratio (Linear) | > 100:1 |
| M² | < 50 |
| Storage Temperature (℃) | 0 to 40 |
| Weight (g) | ≤ 200 |
| Lifetime (hours) (MTTF at 25℃) | > 5000 |
