532nm

-1
-1

532nm

Applications:

· Laser Printing

· Spectroscopy

· Cell Sorting

· DNA Sequencing

· Wafer Inspection

· Particle Counting


Features:

· Ultra Compact

· Low Noise

· Excellent

· Power Stability Long Lifetime

Product Details:

Product Specifications:


SpecificationGreen Laser Torch X1
Wavelength532± 0.3nm
Output Power100mW
Power Stability (rms, over 8 hours)< 2%
Beam Mode QualityM² < 1.2
Beam Mode TransverseTEM00
Beam Mode LongitudeSingle
Beam Diameter1± 0.2mm
Beam Symmetry> 0.8:1
Beam Divergence [1/e2 ]< 2mrad
Warm up Time< 30minutes
Expected Lifetime10,000 hours

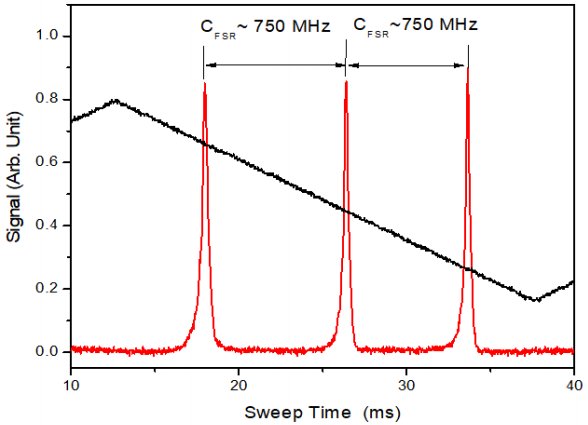

Longitudinal Mode (example):

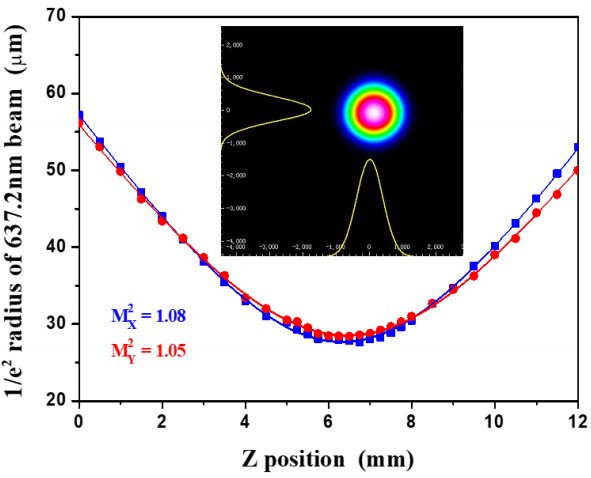

Transverse Mode and M2 (example):

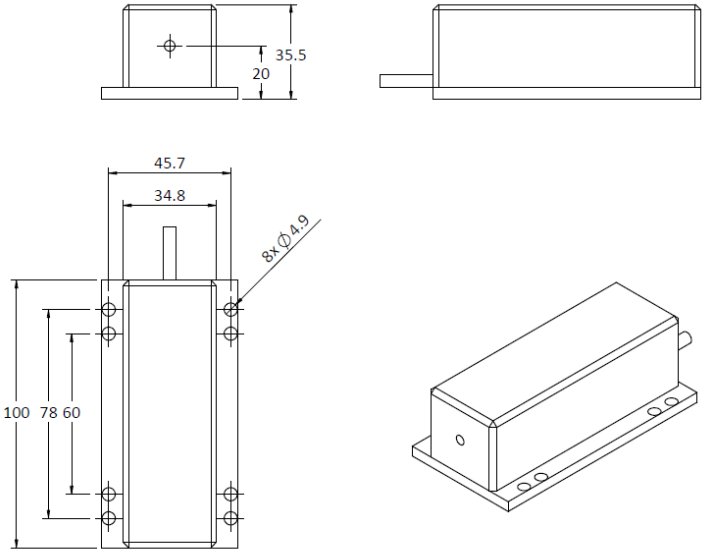

Drawing:
