561nm

G561D005-20x55-PMF
G561D005-20x55-PMF

561nm

Features

· DPSS Laser

· Fast Rise Time

· High Reliability

· PM Fiber Coupled

· Laser Welded Fiber Connection


Product Details:

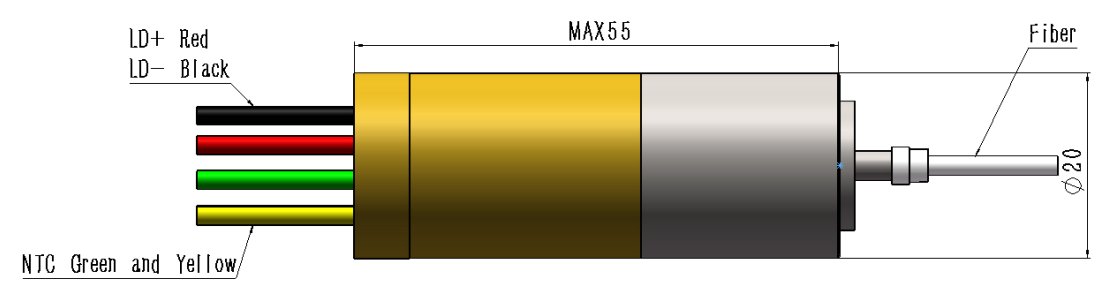

Dimensions (Unit: mm):

Product Specifications:


SpecificationG561D005-20x55-PMF
Wavelength561 -7 /+3nm
Output Power4- 7mW
Spatial ModeMulti
Laser Class3B
Fiber Type3.5/125um PM fiber with
 0.9mm loose tube
Numerical Aperture0.12
Extinction Ratio16db
Fiber Length (m)1
Fiber TerminationFC/PC connector
Laser Drive ModesCW
Storage Temperature (℃)0 to 40
Weight (g)≤ 200
Lifetime (hours) (MTTF at 25℃)>5000


Picture:
