555nm green yellow line laser module
Features:
· Gaussian Line
· Wide Temperature Range
· High Visibility
· High Reliability
Product Details:
555nm green yellow line laser module
Lasence G555L015-17x35-120-(-10-50)-10 is specially designed for laser level, it is much visible than that of our green wavelength, such as 520nm and 532nm.

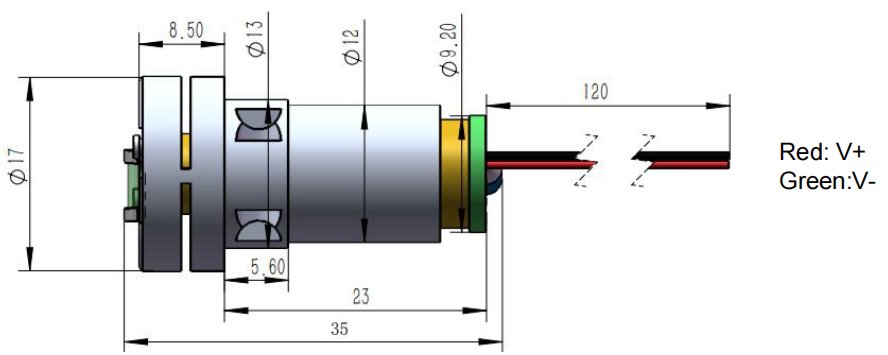

Dimensions (Unit: mm):
Product Specifications:
| Specification | G555L015-17x35-120-(-10-50)-10 |
| Wavelength | 555 ± 4 nm |
| Output Power | > 15 mW |
| Spatial Mode | Multi |
| Laser Class | 3R |
| Residual IR | 1% |
| Line width @ 7m (mm) | <4 |
| Deviation of Laser Beam at 10m (mm) | <2 |
| Line Curvature (mm) at 10m | < ±1 |
| Fan Angle (1/e 2 , degree) ( | 120 |
| Warm-Up Time (seconds) | ＜ 0.2 |
| Polarization Ratio | ＞ 100:1 |
| Laser Drive Modes | CW / Pulsed |
| Power Type | ACC-CW input / ACC-TTL (50% duty cycle - it can not be adjusted, 110Hz) |
| Operating Temperature (℃) | -10 to 50 |
| Storage Temperature (℃) | -40 to 60 |
| Weight (g) | 11.6 |
| Lifetime (hours) (MTTF at 25℃) | >10000 |
