Product Details:

Lasence 405nm to 589nm DPSS and Diode Dot Laser Modules

Wavelength	Model No#	Laser Type	Output Power	Compact Same Dimensions
405nm	UV405D075-66.8x23x22-2.0	Diode Laser	75mW	66.8x23x22mm
450nm	B450D050-66.8x23x22-2.0		50mW
488nm	B488D030-66.8x23x22-1.5		30mW
505nm	G505D070-66.8x23x22-2.0		70mW
520nm	G520D020-66.8x23x22-2.0		20mW
638nm	R638D100-66.8x23x22-1.5		100mW
532nm	G532D060-66.8x23x22-1.5	DPSS Laser	60mW
545nm	G545D040-66.8x23x22-1.5		40mW
551nm	G551D030-66.8x23x22-1.5		30mW
555nm	G555D030-66.8x23x22-1.5		30mW
561nm	Y561D015-66.8x23x22-1.5		15mW
571nm	Y571D030-66.8x23x22-2.0		20mW
577nm	Y571D030-66.8x23x22-2.0		20mW
589nm	Y585D020-66.8x23x22-2.0		20mW
Note:	Datasheets will be prodived on request

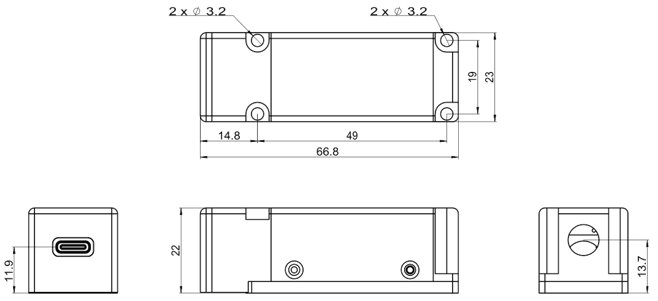

Dimensions (Unit: mm):

Product Specifications:

Specification	G545D040-66.8x23x22-1.5
Wavelength	545 ±2 nm
Output Power	40mW
Spatial Mode	TEM00
M² (Beam Quality)	≤ 1.3
Beam Asymmetry	≤ 1:1.05
Beam Diameter at Output Window (mm)	1.5
Beam Divergence (full-angle) (mrad)	＜1.5
Pointing Stability (>2h, µrad/°C)	± 2
RMS Noise (%) (20 Hz to 20 kHz)	≤ 1
Peak-to -Peak Noise (%) (20 Hz to 20 kHz)	≤ 3
Long-Term Power Stability (%) (8 hours）	＜ 2
Warm-Up Time (minutes)	＜ 5
Polarization Ratio	＞ 100:1
Laser Drive Modes	CW
Power Consumption (W)	Typ. 5, Max. 12
Operating Temperature (℃)	15 to 35
Storage Temperature (℃)	0 to 40
Weight (g)	≤ 100

Laser Driver:
