Applications:
· High brightness
· High Reliability
· Reverse Polarity Protected
· Isolated Housing
Contact Us
638nm 1W Laser Module
Applications:
· High brightness
· High Reliability
· Reverse Polarity Protected
· Isolated Housing
Product Details:
638nm 1W Laser Module

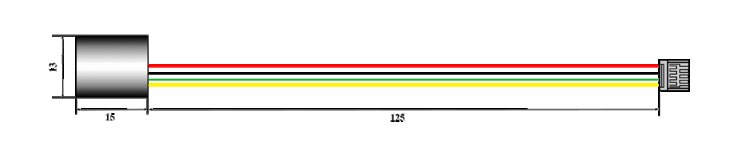

Dimensions (Unit: mm):
Product Specifications:
| Specification | R638D1000-13x15-1-(-10-50)-10 |
| Wavelength | 638 ±6 nm |
| Output Power (mW) at 25℃ | 950 - 1000mW |
| Power Stability at 25℃ (RMS) | < ±5% |
| Output Power Mode | CW |
| Laser Class | 4 |
| Beam Divergence at fast axis (mrad) | < 1.2 |
| Linewidth @ 750mm FWHM (μm) | < 1200 |
| Linewidth @ 1500mm FWHM (μm) | < 500 |
| Linewidth @ 1850mm FWHM (μm) | < 900 |
| Sidelobes (3) from 750mm to 1850mm | < 15% |
| M² at fast axis | < 2 |
| Storage Temperature (℃) | -10 to 60 |
| Rise Time (seconds) | 0.2 |
| Weight (g) | 13 |
| Lifetime (hours) (MTTF at 25℃) | > 8000 |
