571nm

1
1

571nm

Features:

· DPSS Laser

· High Power

· High Reliability

· Yellow Laser


Product Details:

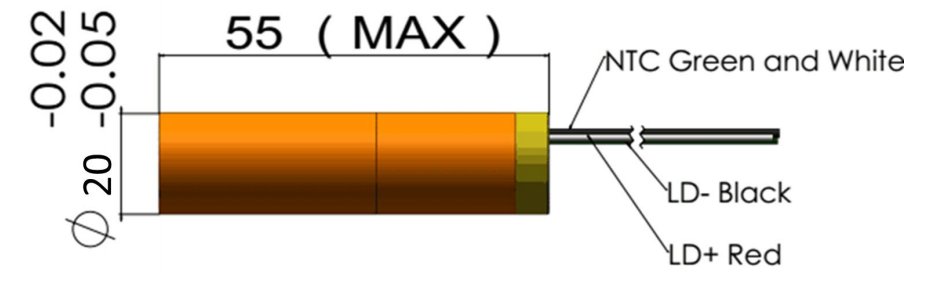

Dimensions (Unit: mm):



Product Specifications:


SpecificationY571D500-18x55-40
Wavelength571 ±4 nm
Output Power (mW) > 500 mW
Power Stability at const. Temperature<  ±10%
Output Power ModeCW
Laser Class3B
Beam Divergence (full-angle) (mrad)< 40
Beam Diameter at Output Window (mm)0.5
Beam Mode TransverseTEMn1
Polarization Ratio (Linear)> 100:1
Storage Temperature (℃)0 to 60
Weight (g)≤ 150
Lifetime (hours) (MTTF at 25℃)> 5000
