561nm 15mW yellow green laser module
Features
· DPSS Laser
· >10mW@561nm
· Fast Rise Time
· High Reliability
Product Details:
561nm 15mW yellow green laser module
The Y561D015-12x35-2.5-A dot laser module from Lasence are high quality DPSS that operates at a wavelength of 561nm (532nm, 545nn, 555nm optional) It delivers an output power of over 10mW and has a high stability. Its operating volatge is 3V, and current is less than 400mA, with TEM00 mode.

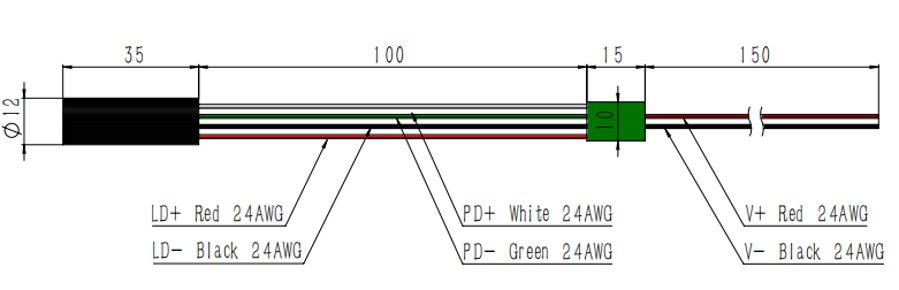

Dimensions (Unit: mm):
Product Specifications:
| Specification | Y561D015-12x35-2.5-A |
| Wavelength | 561 ±2 nm |
| Output Power | >10mW |
| Power Stability at T℃ | < ±3% |
| Output Power Mode | CW |
| Laser Class | 3B |
| Beam Mode Longitude | Multi |
| Beam Mode Transverse | TEM00 |
| Beam Roundness | >70% |
| Beam Diameter at Output Window (mm) | 0.5 |
| Beam Divergence (full-angle) (mrad) | <2.5 |
| Polarization Ratio (Linear) | >100:1 |
| Residual IR | <3% |
| Power Type | APC |
| Rise Time (s) at 0.5A | ＜ 0.2 |
| Operating Caser Temperature (℃) | 15 to 35 |
| Storage Temperature (℃) | 0 to 40 |
| Weight (g) | ≤ 100 |
Note: much smaller size 10x25mm is optional.
