520nm single mode fiber coupled laser
Features
· 520nm Diode Laser
· 3.5um SM Fiber
· Fast Rise Time
· High Stability
Product Details:

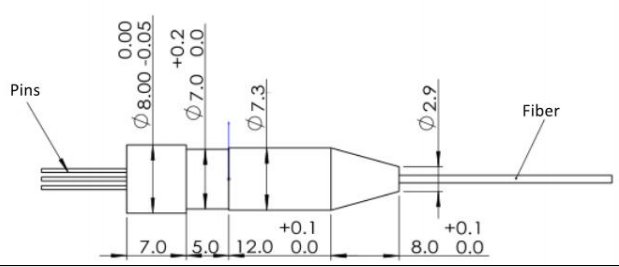

Dimensions (Unit: mm):
Product Specifications:
| Specification | G520-SMF20 |
| Wavelength | 520 ±5 nm |
| Output Power after Fiber | 20-30mW |
| Fiber coupling efficiency | 30% |
| FWHM | <2 |
| M² (Beam Quality) | ≤ 2.5 |
| Power Stability (1h, %) | ± 2 |
| Longitudinal Mode | Single Mode Fiber |
| Fiber Type | 3..5/125um with 900um loose tube |
| Fiber Numerical Aperture | 0.13 |
| Fiber Length (m) | 1 - 1.1 |

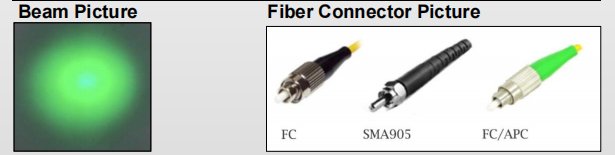

| Fiber Termination | FC/PC or FC/APC or SMA905 |
| Laser Drive Modes | CW |
| Operating Current | 160mA |
| Operating Voltage (DC) | 7V |
| Operate Temperature (℃) | -10 to 60 |
| Storage Temperature (℃) | -40 to 85 |
| RoHS Compliance Declaration | Yes |
