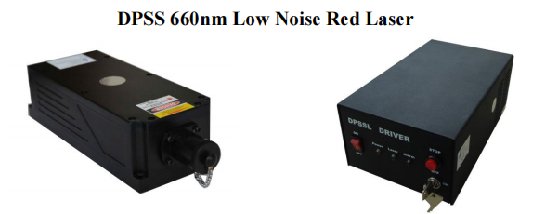

660nm 100mW Low Noise Laser
Applications
· Life Science
· Scientific Experiment
. Optical Instrument
. Laser Display
Product Details:
Product Specifications:
| Specification | R660D100-200x70x50-00 |
| Wavelength | 660 ±1 nm |
| Output Power | < 100 mW |
Bandwidth | 0.1 mm |
| M² (Beam Quality) | 1.2 |
RMS Power Stability（25℃，2h） | <1% |
RMS Noise（1-20MHz，5s） | <1% |
Beam Divergrnce (1/e2 , Full Angle) (mrad | <1.2 mrad |
Beam Diameter at Output Window (mm | <2.0 |
| Beam Pointing Stability | ＜ 0.05 urad/℃ |
| Operating Voltage | 90-265VAC 50/60Hz |
Modulation | TTL Modulation > 5KHz |
| Operating Temperature (℃） | 10 to 35 |
Warm-up Time (minutes) | < 15 |
Lifetime (h) (MTTF at 25℃) | >10000 |
