Features:
Easy to take
Long working time
Visible 545nm laser
Contact Us
Product Details:

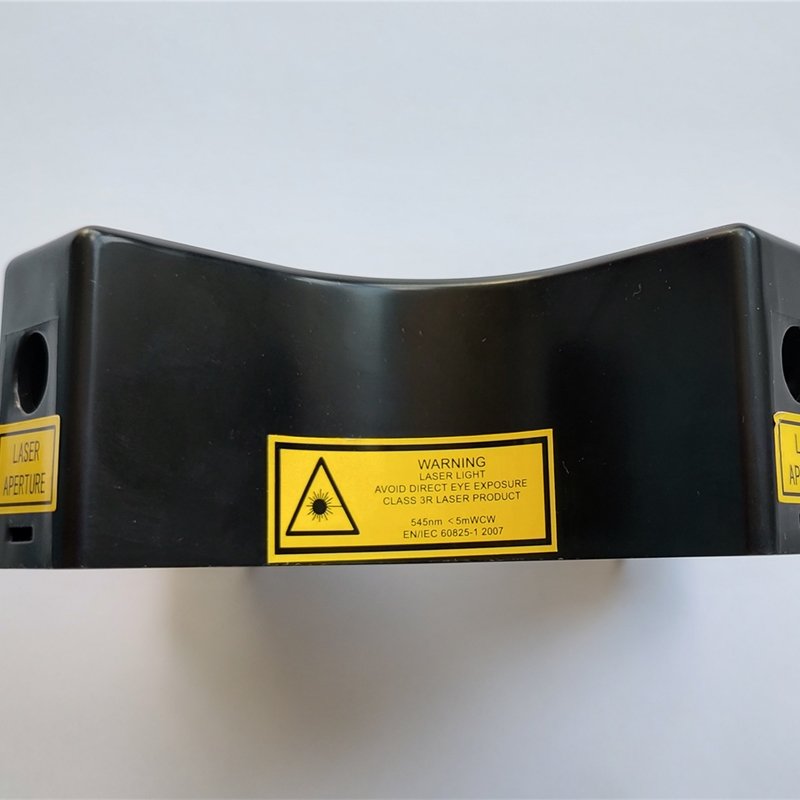

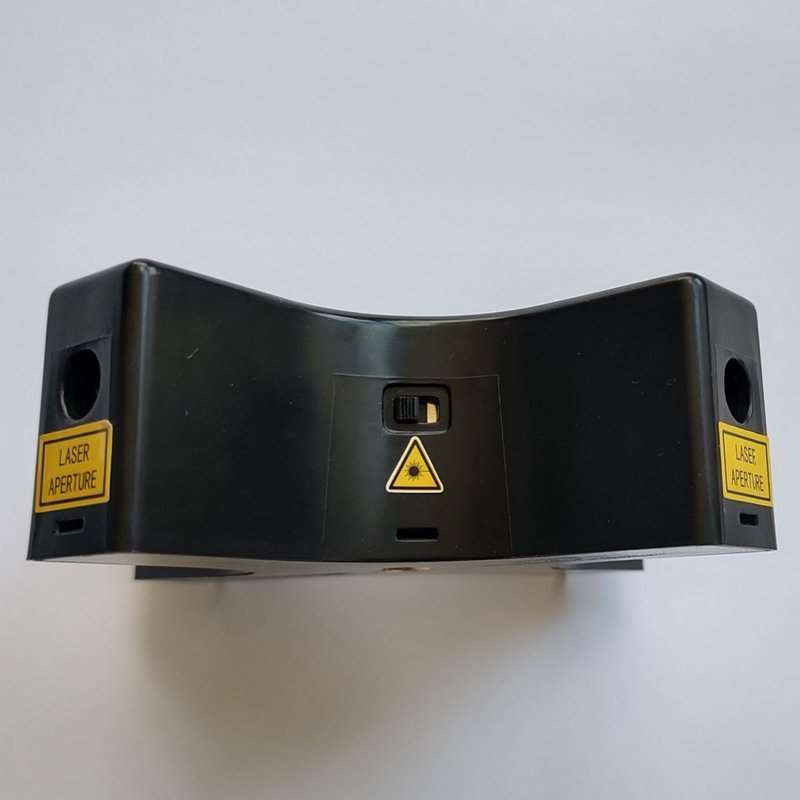

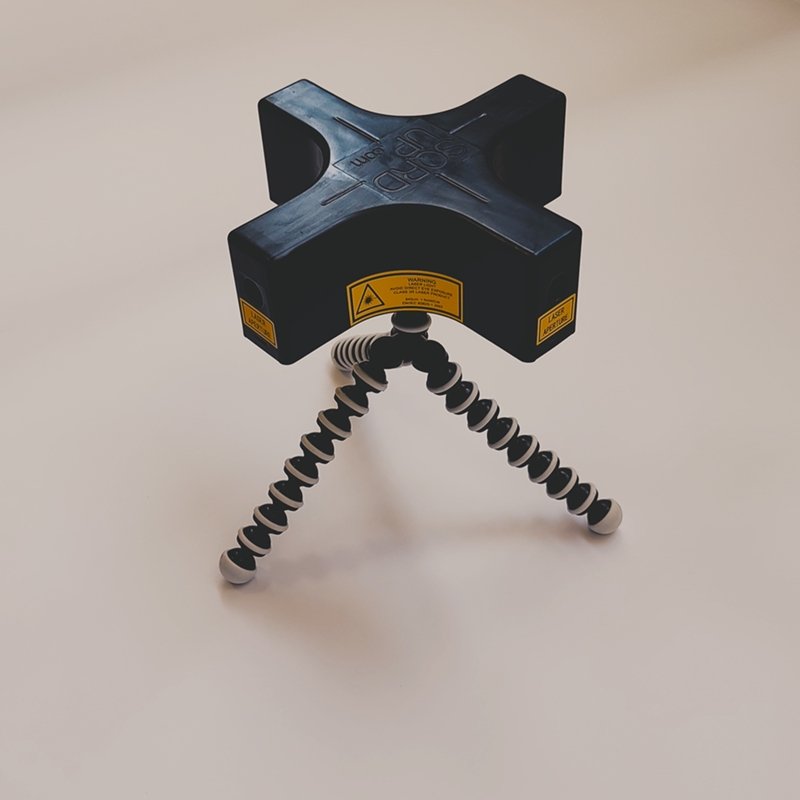

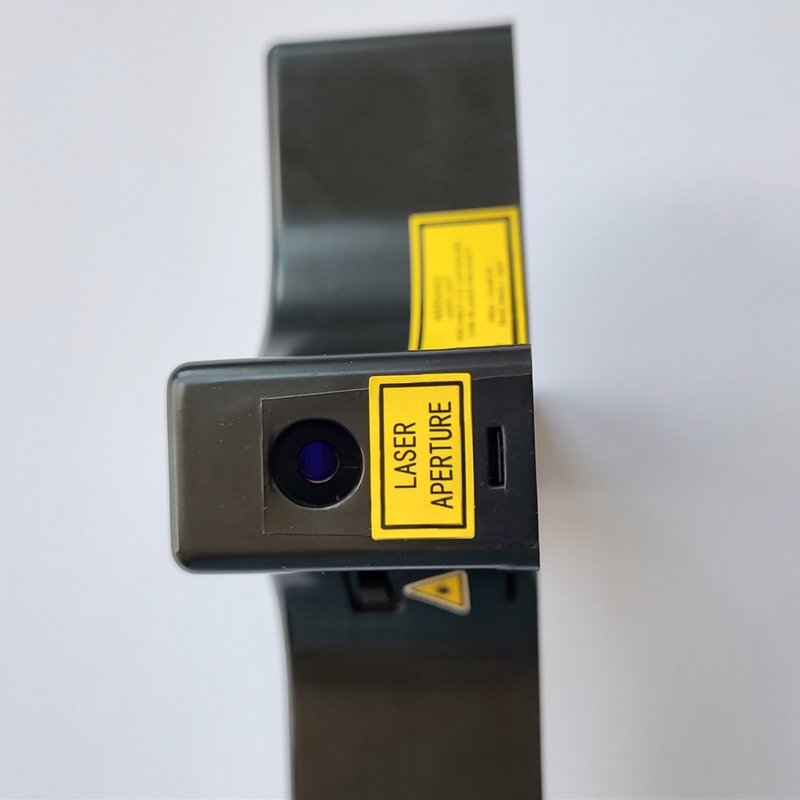

Datasheet for Golf Calibration Toll | ||||
Model | G545L020-14.5×14.5x4.5-15-D | |||
Mechanical Specifications | Min | Typ | Max | |
Dimensions | Length (mm) | 144 | 146 | 148 |
Width (mm) | 144 | 146 | 148 | |
Height(mm) | 42 | 44 | 46 | |
Weight (g) | 222 | 232 | 242 | |
Optical Parameters | Min | Typ | Max | |
Wavelength (nm) | 543 | 545 | 547 | |
Output Power (mW) | 18 | 20 | 22 | |
Power Stability | ＜±30% | |||
Fan Angle（°） | 12 | 15±3° | 18 | |
Width（mm） | ＜0.7mm@600mm | |||
Focus Distacne (mm） | 600 | |||
Electrical Specifications | Min | Typ | Max |
Laser Module Quantity | 4 | ||
Charge Operating Temperature(℃) | 0 | 45 | |
Device Operating Temperature℃) | -20 | 50 | |
Power Supply Mode | Battery | ||
Operating Charing Voltage(V) | 5 | ||
Charging Mode (1) | USB | ||
Control Mode | Toggle Switch | ||
Reliability | Min | Typ | Max |
Operating Case Temperature Range (℃) | 10 | 50 | |
Rise Time (Seconds) (s) | 0.5 | ||
Storage Temperature (℃) | -30 | 60 | |
Lifetime (hours) (MTTF at 25℃) | 5000 |
