405nm Fiber Coupled Laser 0 to 500mW adjustable This laser is engineered to measure optical fiber transmission efficiency.

Mechnical Parameters

Min

Typ

Max

Laser

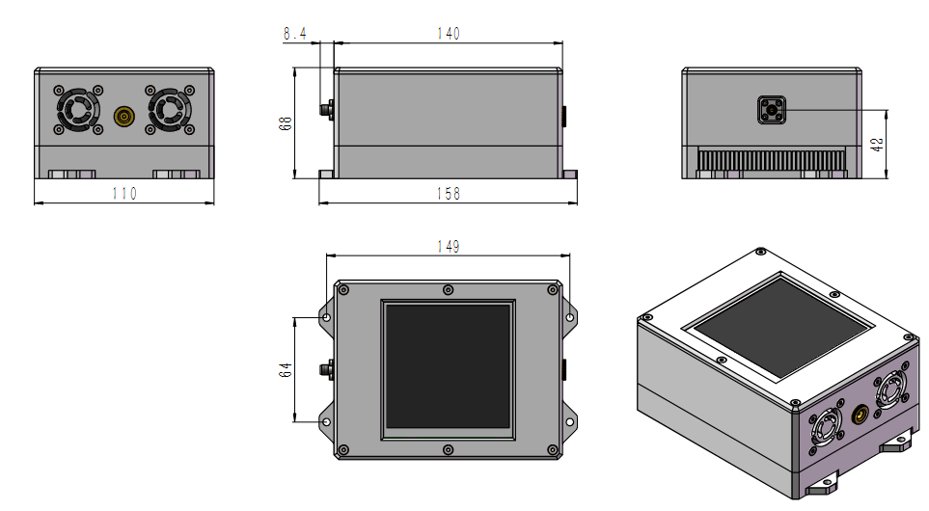

Size (mm)

-

110*158*68

-

Weight (g)

-

2000

-

Housing Materail

SUS304

Optical Parameters

Min

Typ

Max

Wavelength @25℃(nm)

400

405

410

Spectral Width (FWHM)(nm)

-

2

3

Output Power @25℃(mW)

-

500

-

Power Stability @ 25℃

±1%

±2%

Output Mode

CW

Laser Class

3B

Fiber Parameters

Min

Typ

Max

Fiber Diameter (μm)

105/125

NA

0.22

Connector

FC/PC

Reliability

Min

Typ

Max

Operating Temperature (℃)

-10

-

60

Storage Temperature (℃)

 -40

-

85

Ambient Humidity (RH, %)

5

-

85

Life Time (25℃)

5,000

-

-
