532nm 5mW Dot Laser Module

532nm 5mW Dot Laser Module

Lasence Model G532D005-12x41-1.7-(15-50)-11 is a DPSS (Diode-Pumped Solid-State) laser featuring a TEM₀₀ round beam with an output power not exceeding 5mW at a wavelength of 532nm. The laser is designed with key specifications including a compact form factor and a beam quality parameter. It operates over a wide temperature range, specially designed for medical and aesthetic.

• Wide Temperature Operation: Suitable for diverse environmental conditions.

• Mini Size: Ultra-compact design for space-constrained applications.

• Fast Rise Time: Enables rapid activation and modulation.

• High Reliability: Built for long-term stable performance in industrial and scientific setups.

This laser is ideal for applications requiring low-power, high-quality beams, such as optical alignment, scientific instrumentation, or compact optical systems where size, reliability, and temperature tolerance are critical.

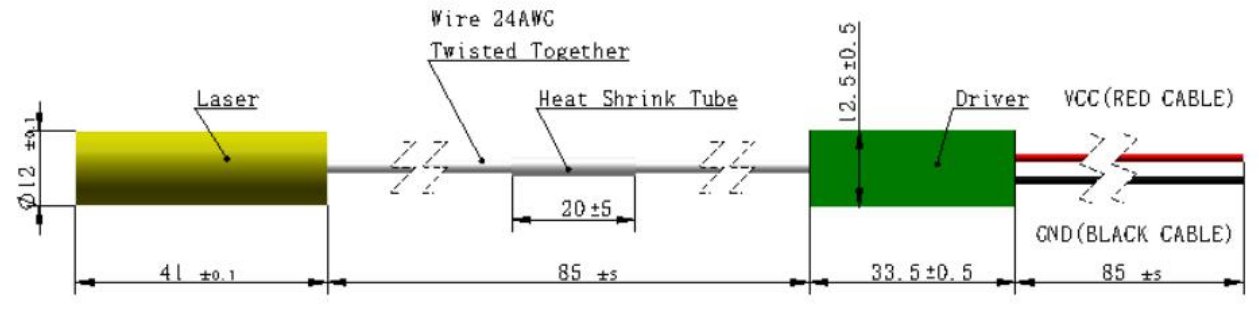

Dimensions (Unit: mm):

Product Specifications:
