520nm DPSS 1W Laser
Features:
· DPSS Laser
· 1W@520nm
· Wide Temperature Range
· Fast Rise Time
· High Reliability
Product Details:

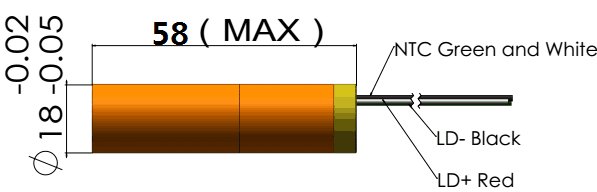

Dimensions (Unit: mm):
Product Specifications:
| Specification | G520D1000-18x58-40 |
| Wavelength | 520 -1 /+4 nm |
| Output Power (mW) at 24℃ at 6A | 900 - 1000mW |
| Spectral Bandwith | < 1 |
| Power Stability at const. Temperature | < ±5% |
| Output Power Mode | CW |
| Laser Class | 4 |
| Beam Divergence (full-angle) (mrad) | < 50 |
| Beam Diameter at Output Window (mm) | 0.5 |
| Beam Mode Transverse | TEM10 |
| Polarization Ratio (Linear) | > 100:1 |
| M² | < 50 |
| Storage Temperature (℃) | 0 to 40 |
| Rise Time (seconds) at 5.5A (4) (-30 to 50℃) | < 5 |
| Weight (g) | ≤ 250 |
| Lifetime (hours) (MTTF at 25℃) | > 5000 |
