589nm 1W fiber coupled DPSS laser
Applications
. Laser Medical Treatment
· Scientific Experiment
. Optical Instrument
. Laser Display
Product Details:
589nm 1W CW Yellow Laser
Lasence 589nm 1W Fiber-coupled DPSS Laser is produced based on Lasence self-frequency doubling crystal,with features of high stability, fiber coupled (50μm to 200μm fiber optional), fan cooling (water cooling version optional).

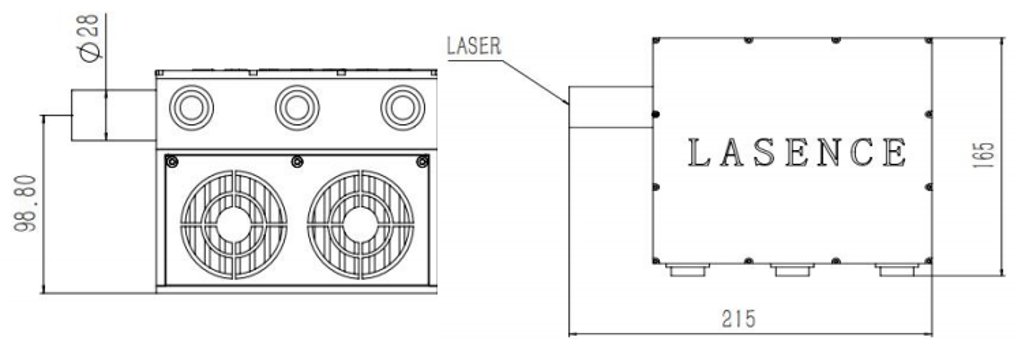

Dimensions (Unit: mm):
Product Specifications:
| Specification | Y589D1000-215X165X125-MMF |
| Wavelength | 589 ±2 nm |
| Output Power | ≥900 mW free space or out of fiber |
| Laser Class | 3B |
| Fiber Core Diameter (mm) | 50um, 100μm or 200μm, |
| Fiber Length (mm) | 1m or 1.5m |
| Operating Voltage (V) | 100-240V |
Power Operating Current (A) | max. 5A |
| Output Mode | CW or QCW |
| Lifetime (hours) (MTTF at 25℃) | > 5000 |
| Storage Temperature (℃) | 0 to 40 |
| Weight (g) | < 150 |
