545nm 100mW DPSS Laser Module with PCB
Features:
· DPSS Laser
· 100mW@545nm
· Wide Temperature Range
· Fast Rise Time
· High Reliability
Product Details:
545nm 100mW DPSS Laser Module with PCB
Lasence 545nm 100mW laser module is high power 100mW with TEC and NTC inside, with good power stability. It can be designed with PCB or without. PCB can also be customized as APC control. It is manufactured based on Lasence's self-frequency-doubling crystals with independent intellectual property rights, featuring wide temperature adaptability and compact size.Output power 50mW and 20mW is optional.

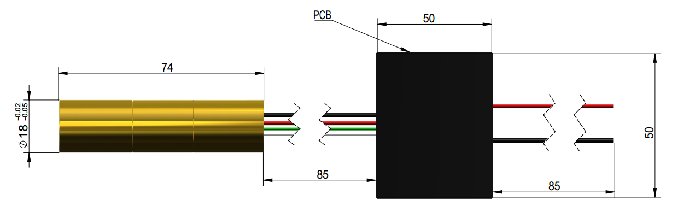

Dimensions (Unit: mm):
Product Specifications:
| Specification | G545D100-18x74-0.8-10 |
| Wavelength | 545 ±2nm |
| Power Stability | < 1% , < 3% |
| Output Power Mode | PWM(70%-100%, adjustable) |
| Laser Class | 3B |
| Beam Divergence (full angel) (mrad) | < 0.8 |
| Beam Diameter at Output Window (mm) | < 6 |
| Beam Mode Transverse | near TEM00 |
| Polarization Ratio (Linear) | > 100:1 |
| Power Type | ACC / 7kHz input |
| Storage Temperature (℃) | -40 - 60 |
| Lifetime (hours) (MTTF at 25℃) | > 5000 |
| Weight (g) | < 120 |
