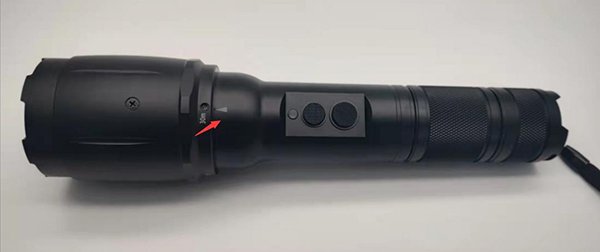

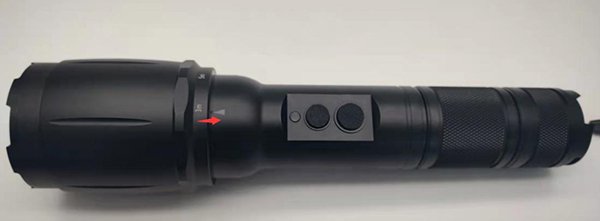

520nm Green Laser Torch

Model Number

G520D-LXM001

Mechanical Specifications

Specs

Conditions

Min

Typ

Max

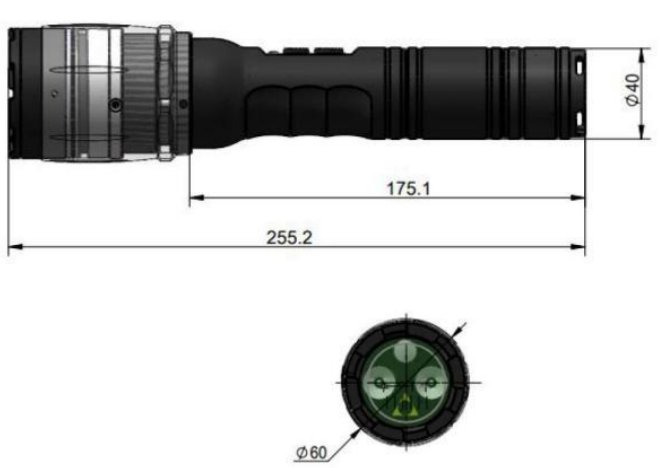

Dimensions

Diameter (Head) (mm)

61.5

62

62.5

Length (mm)

155.5

165

165.5

Weight (g)

-

-

540

Housing Material

Aluminum Alloy

Housing Color

Black

Optical Specifications

Wavelength (nm)

513

520

527

Output Power (W)

1

1.1

1.3

Beam Divergence(mrad)

55

60

65

full angle

Laser Beam Diameter (cm)

85

88

95

@15m

Laser Power Density (mW/cm²)

0.03

-

2

@5m to 15m

Laser Irradiation Mode

Strobe / CW

Blasting Flash Frequency (Hz)

-

10

-

LED Irradiance (Lux)

21

-

-

@25m

LED Beam Diameter (m)

Square 1.5 x1.5

@25m

Video Specifications

Angle of Field⁽¹⁾

60°

68°

-

Working Distance (m)

3

-

15

Image Resolution Ratio (P)

-

1080

-

Image Format and Reading Interface

AVI, Micro USB

Memory Space

64G

Electrical Specifications

Battery ⁽²⁾

3 x 18650

Battery Continuous Operation Time (min)⁽³⁾

120

-

-

all functions works

Reverse Voltage Protection

YES

Reliability

Lifetime (h)

1000

-

-

Drop Test

dropped from 1.2m onto a concrete floor, it works.

Operating Temperature Range (°C)

-40

-

50

Storage Temperature Range (°C)

-45

-

65
