545nm 20mW high visible line laser module
Features:
· Gaussian Line
· Wide Temperature Range
· Fast Rise Time
· High Reliability
Product Details:
545nm 20mW high visible line laser module

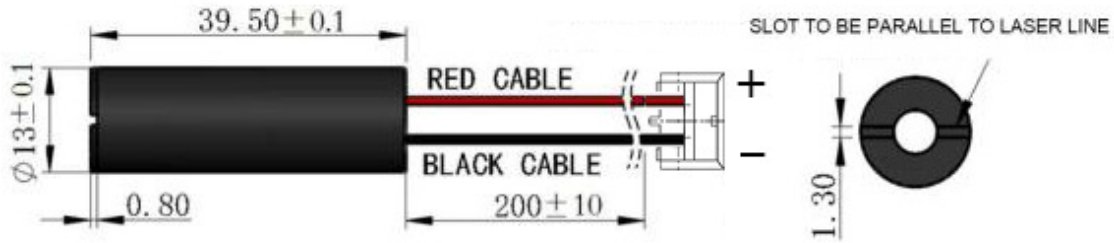

Dimensions (Unit: mm):
Product Specifications:
| Specification | G545L020-13x39.5-15-(10-50)-10 |
| Wavelength | 545 ± 1 nm |
| Output Power | 20 mW |
| Spatial Mode | Multi |
| Linewidth (mm) at Distance at 600mm | <0.7 |
| Line Curvature (mm) at 10m | ≤ ± 1 |
| Residual IR | 0.04 |
| Fan Angle (Degree) | 45644 |
| Focus Distance (mm) | 600 |
| Warm-Up Time (seconds) | ＜ 0.5 |
| Polarization Ratio | ＞ 100:1 |
| Laser Drive Modes | CW |
| Operating Temperature (℃) | 10 to 50 |
| Storage Temperature (℃) | -30 to 60 |
| Weight (g) | ≤ 15 |
| Lifetime (hours) (MTTF at 25℃) | >5000 |
