Features:
· DPSS Laser
· 12mm Diameter
· Wide Temperature Range
· Green 545nm (532, 555 are optional)
· High Reliability
Contact Us
545nm 50mW laser module
Features:
· DPSS Laser
· 12mm Diameter
· Wide Temperature Range
· Green 545nm (532, 555 are optional)
· High Reliability
Product Details:
545nm 50mW laser module
Lasence has a series of DPSS laser modules based on her own self-frequency doubling laser crystal, providing wavelengths of 520nm, 532nm, 545nm, 551n, 555nm, 561nm , 571nm and 577nm with output powers ranging from less than 1mW to 1.8W.
Below is a 50mW version with PCB, other wavelength can also be customzied.

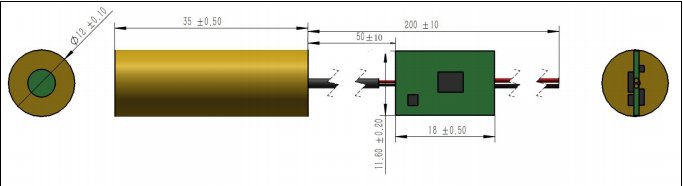

Dimensions (Unit: mm):
Product Specifications:
| Specification | G545D050-12x35-0.8-(15-35)-50 |
| Wavelength | 545 ±1 nm |
| Output Power (mW) at 25℃ at 0.9A | 45 - 55 mW |
| Power Stability at const. Temperature | < ±5% |
| Output Power Mode | CW |
| Laser Class | 3B |
| Beam Divergence (full-angle) (mrad) | < 0.8 |
| Beam Diameter at Output Window (mm) | 5 |
| Polarization Ratio (Linear) | NA |
| Storage Temperature (℃) | -40 to 60 |
| Rise Time (seconds) | < 0.5 |
| Weight (g) | ≤ 30 |
| Lifetime (hours) (MTTF at 25℃) | > 5000 |
