510nm 5W DPSS Laser
Applications:
· Laser Medical Treatment
· Scientific Experiment
· Optical Instrument
· Laser Display
Product Details:
510nm 5W DPSS laser
The single - channel set has a rated power of 5W and is fiber - coupled. The laser power ranges from 0 to 5.0W, with a maximum output power of 5W. The power stability is ±3%. The beam mode is multimode. The time instability of the laser output power (St) is ≤±5%, and the laser output power deviation (Δ) is ≤±10%. The wavelength is 510nm ± 3nm.

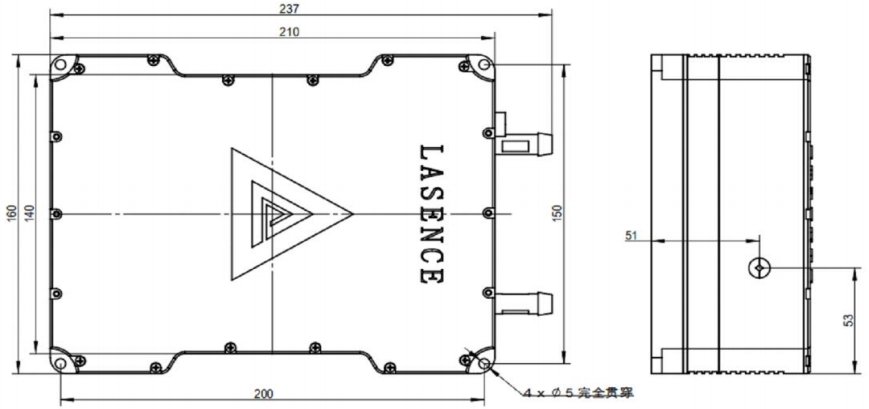

Dimensions (Unit: mm):
Product Specifications:
Product Specifications:
Model Number | HP-G510-10000-LA |
Optical Specifications | |
Wavelength | 510 nm |
Center Wavelength Deviation | +/- 3 nm |
Output Power | 1000-10000 mW |
Power Stability (over 4 hours) (rms) | < ±5% |
Operating mode | CW |
Fiber Core Diameter (μm) | 400，600... |
Fiber Numerical Aperture | 0.22 |
Fiber Connector | SMA905/FC |
Operating Voltage (DC,V) | 12 |
Operating Current (A) | < 30 |
TTL or Analog modulation | 1Hz-410kHz |
Operating Temperature (℃) | 0 to 40°C |
Storage Temperature (℃) | 0 to 40°C |
Lifetime (MTTF) | 10,000 hours |
Laser Class | Ⅳ |
Cooling Mode | Water |
Warranty Time | 1 year |
Mechanical Specifications | |
Dimension of Laser Head | 225 (L) x 160 (W) x 66(H) mm |
Dimension of Power Supply | / |
Dimensional Tolerances | ±10mm |
