589nm 5W high power DPSS Laser
Applications:
· Laser Medical Treatment
· Scientific Experiment
· Optical Instrument
· Laser Projector
Product Details:
589nm 5W high power DPSS Laser
The Y589D5000-210X160X66-MMF Laser from Lasence are high quality DPSS laser that operates at a wavelength of 589nm. It delivers an output power of over 5W and has a high RMS stability <5%.
It is fiber couplled with 300 or 400μm fiber with good beam spot.

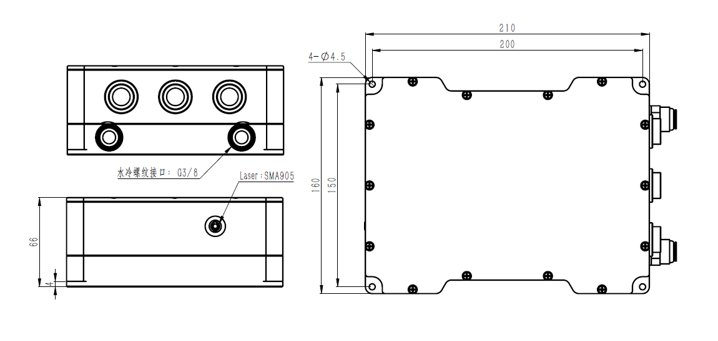

Dimensions (Unit: mm):
Product Specifications:
| Specification | Y589D5000-210x160x66-MMF |
| Wavelength | 589 ±2 nm |
| Output Power after fiber | 5W |
| Fiber Core Diameter(μm) | 400μm |
| Fiber NA | 0.22 |
| Fiber Length | ~1m |
| Fiber Connector | SMA905 and others optional |
| Opearating Voltage | 12V(others are optional) |
| Warm-Up Time (minutes) | ＜ 15 |
| Laser Drive Modes | CW |
| Power Consumption (W) | ~240W |
| Operating Temperature (℃) | 23 to35 |
| Storage Temperature (℃) | 0 to 40 |
