577nm 1W Fiber-coupled DPSS Laser
Features
· DPSS Laser
· 50μm fiber coupled
· High Stability
· Yellow Laser
Product Details:
577nm 1W Fiber-coupled DPSS Laser
Lasence 577nm 1W Fiber-coupled DPSS Laser is produced based on Lasence self-frequency doubling crystal,with features of high stability, fiber coupled (50μm to 200μm fiber optional), water cooling (fan cooling version optional).

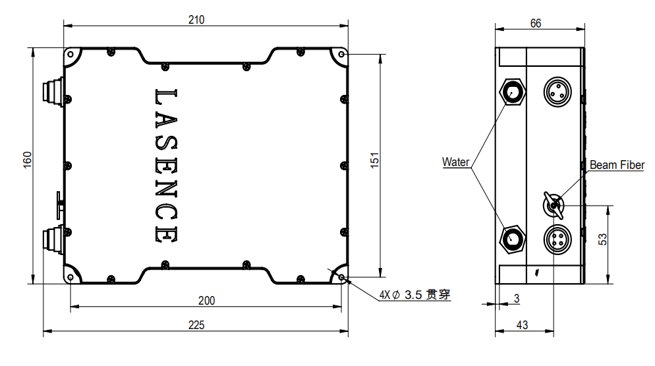

Dimensions (Unit: mm):
Product Specifications:
| Specification | Y577D1000-215x165x215-50FC |
| Wavelength | 571 ±3 nm |
| Output Power | ≥800 mW free space or out of fiber |
| Laser Class | 3B |
| Fiber Core Diameter (mm) | 50um, 100μm or 200μm, |
| Fiber Length (mm) | 1m or 1.5m |
| Operating Voltage (V) | 100-240V |
Power Operating Current (A) | max. 5A |
| Output Mode | CW or QCW |
| Lifetime (hours) (MTTF at 25℃) | > 5000 |
| Storage Temperature (℃) | 0 to 40 |
| Weight (g) | < 150 |
