660nm 5mW uniform line laser module
Features
· 660nm Red Laser
· High Reliability
· Uniform Line
· Wide Temperature Range
Product Details:

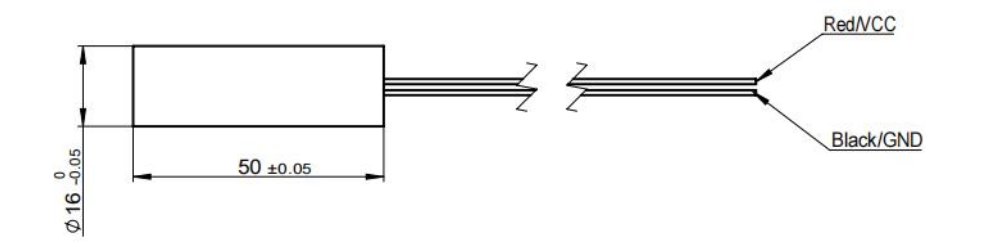

Dimensions (Unit: mm):
Product Specifications:
| Specification | R660L005-16x50-60-(-10-60)-CW |
| Wavelength | 660 ±7nm |
| Output Power (mW) at 25℃ | 4-7mW |
| Output Power Mode | CW |
| Laser Class | 3B |
| Fan Angle (1/e2, degree) | 60° |
| Linewidth at 135mm~435mm(mm,1/e 2 ) | < 1 |
| Line Uniformity | >70% |
Power Distributio | Uniform |
| Power Type | ACC |
| Opearting Voltage and Current | 5V , < 100mA |
| Opearating Temperature (℃) | -10 - 60 |
| Lifetime (hours) (MTTF at 25℃) | > 5000 |
