577nm 3W small laser module
Applications:
· Life Science
· Scientific Experiment
. Optical Instrument
. Medical
Product Details:
577nm up to 3W laser module
Lasence 577nm 3W laser module is produced as DPSS laser based Lasence self-frequency doubling laser crystal, with features of very compact size and high stability, it can be designed as free space or fiber coupled.
This version is with 1W, 2W and 3W version.

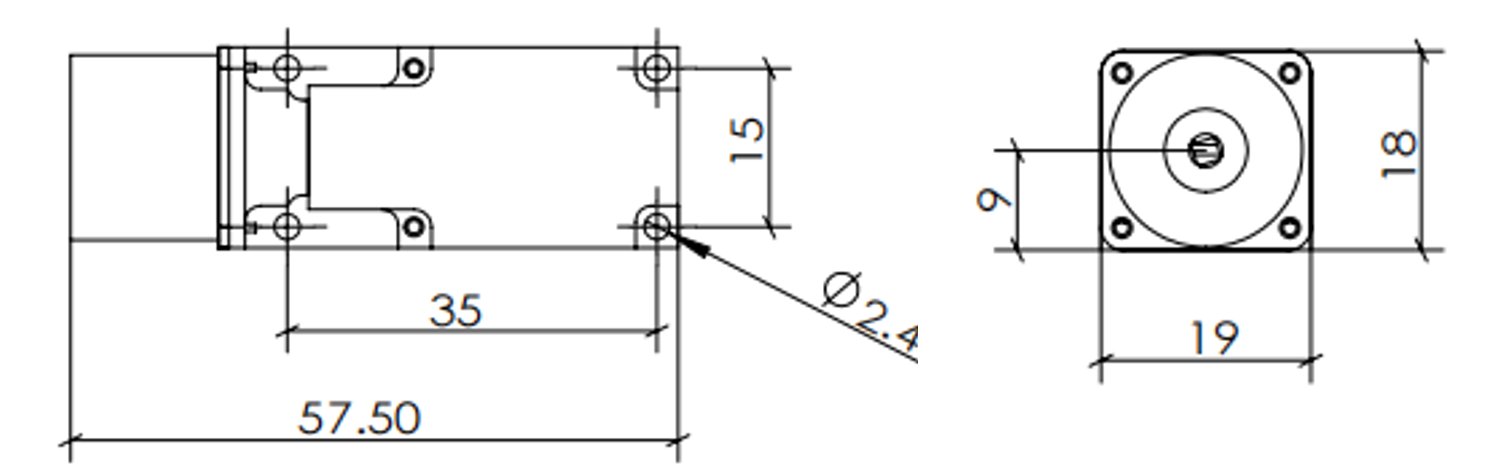

Dimensions (Unit: mm):
Product Specifications:
| Specification | Y577D3000-19x18x58-40 Y577D2000-19x18x58-40 Y577D1000-19x18x58-40 |
| Wavelength | 571 ±3 nm |
| Output Power | 1W/2W/3W |
| Laser Class | 3B |
| Beam Diameter at Output Window (mm) | 0.5 |
| Power Consumption (W) | <40W |
| Spatial Mode | Multi |
| Polarization Ratio (Linear) | > 100:1 |
| Beam Divergence (full-angle) (mrad) | ＜40 |
| Laser Drive Modes | CW |
| Lifetime (hours) (MTTF at 25℃) | >10000 |
| Storage Temperature (℃) | 0 to 40 |
| Weight (g) | < 150 |
Note: 577nm 1W， 2W， 3W versions datasheets are provided on request.
