571nm 1W CW DPSS Laser-fan cooling
Applications
. Laser Medical Treatment
· Scientific Experiment
. Optical Instrument
. Laser Projector
Product Details:
571nm 1W CW DPSS Laser
Lasence 577nm 1W Fiber-coupled DPSS Laser is produced based on Lasence self-frequency doubling crystal,with features of high stability, fiber coupled (50μm to 200μm fiber optional), fan cooling (water cooling version optional).

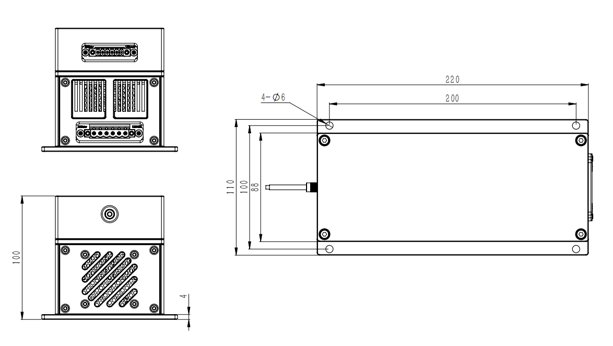

Dimensions (Unit: mm):
Product Specifications:
| Specification | 571D1000-220x110x100-MMF |
| Wavelength | 571 ±2 nm |
| Output Power (mW) | >900mW after 200μm fiber (NA=0.22） |
| Power Stability at const. Temperature | 1%, 2% |
| Output Power Mode | CW |
| Laser Class | 4 |
| Power Supply | 12V DC |
Power Consumption (W) | 240 |
Beam Mode Longitud | Multi |
Warm up Time (mins) at 6A | 10 |
| Storage Temperature (℃) | 0 to 40 |
| Laser Head Weight (g) | ≤ 2000 |
| Lifetime (hours) (MTTF at 25℃) | >10000 |
