545nm 1mW line laser module
Features:
· Gaussian Line
· Wide Temperature Range
· Fast Rise Time
· High Reliability
Product Details:
545nm 1mW line laser module
Lasence G545L005-15x31-120-(-20-50)-10 is specially designed for laser level. Other parameters can be customized.

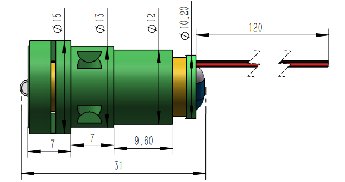

Dimensions (Unit: mm):
Product Specifications:
| Specification | G545L001-15x33-60-(-10-50)-10 |
| Wavelength | 545 ±1 nm |
| Output Power (mW) at 25℃ | 1 mW |
| Power Stability at const. Temperature | < ± 5% |
| Output Power Mode | CW |
| Spatial Mode | Multi |
| Fan Angle (1/e 2 , degree) ( | 60 |
| Line width @ 7m (mm) | < 4 |
| Line Curvature (mm) at 10m | < ±1 |
| Deviation of Laser Beam at 10m (mm) | < 2 |
| Warm-Up Time (seconds) | ＜ 0.2 |
| Storage Temperature (℃) | -40 to 60 |
| Weight (g) | 11.6 |
